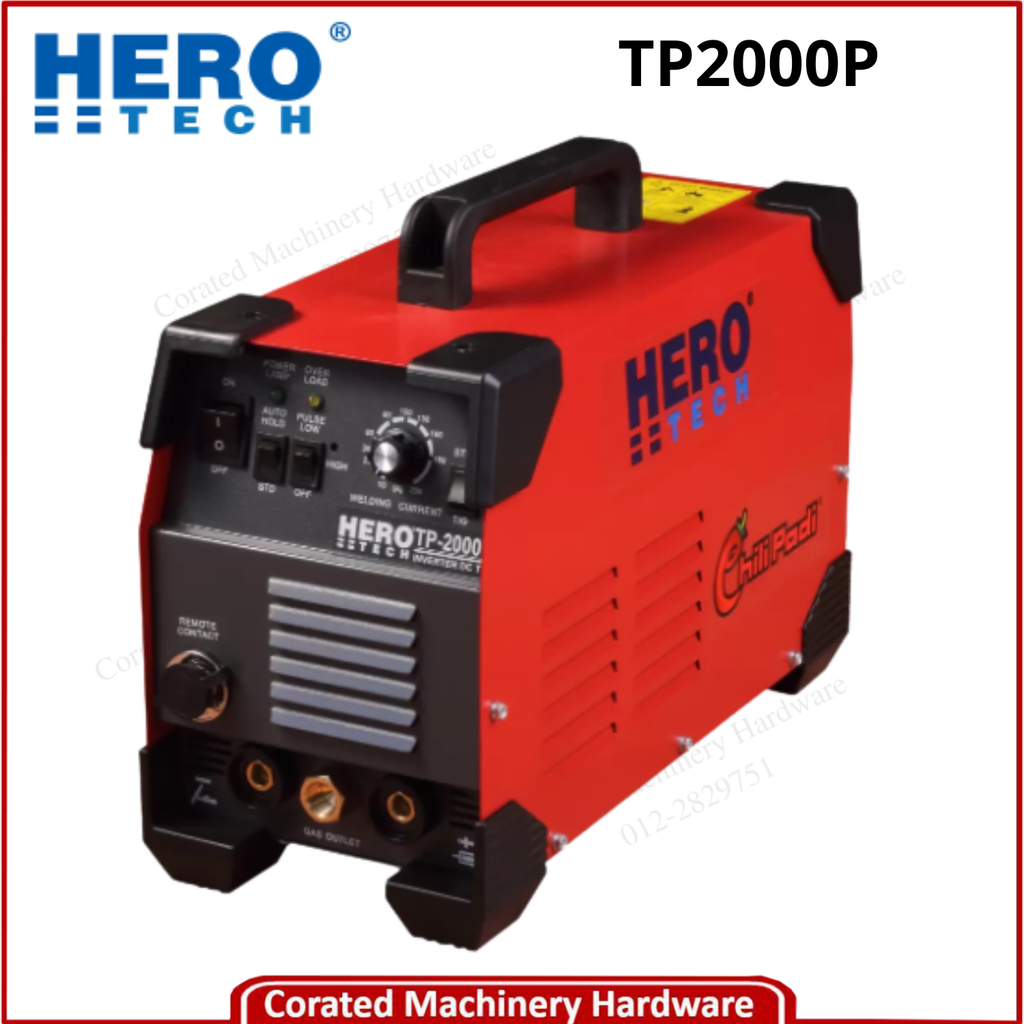

HERO TP2000P TIG WELDING MACHINE
HERO TP2000P TIG WELDING MACHINE C/W STD. ASS'Y (1 SET WP17F 7.5M TIG TORCH COMPLETE SET, 3M-200AMP WELDING CABLE C/W 300AMP EARTH,
Product Specification
Brand
HERO
Barcode
HERO-TP2000P
Model
TP2000P
Local Manufacture Warranty
1 YEAR
Product Description
TIG SERIES
- Constant output by digital control inverter
- High reliable PC Board complete with a wide range of welding current
- High-frequency DC arc starting with pulse control
- Continuous pulse adjustment for automatic welding
- Multiple circuit protection
- Applicable for stainless steel industries
SPECIFICATION | TP - 2000P |
Power Voltage (VAC) | 220, 1Ø, 50/60Hz |
Rated Voltage (%) | ±15 |
Rated Input Current (A) | 4.5 |
Power Capacitance (KVA) | 10 - 200 |
Rated Output Current (A) | 43 |
Open Circuit Voltage (V) | 10 - 18 |
Rated Output Voltage (V) | 0.1 |
Pre Flow Time (Sec) | 2.5 / 5 |
Post Flow Time (Sec) | 0.1 |
MMA Electrode Diameter (mm) | Max. 2.6 |
Pulse Frequency (Hz) | LOW: 0.9 HIGH: 10 |
Pulse Duty Cycle (%) | 50 |
Efficiency (%) | 85 |
Duty Cycle (%) | 35 |
Power Factor (%) | 93 |
Insulation Class (Level) | B |
IP Rating (Level) | IP21S |
Dimension (W*D*H) mm | 365*172*250 |
Weight (KG) | 8 |
