WEST LING SWJ12 TAPPING MACHINE

    RM 1,300.00 RM 1,300.00 1300.0 MYR

    RM 1,300.00

    This combination does not exist.

    Add to Cart

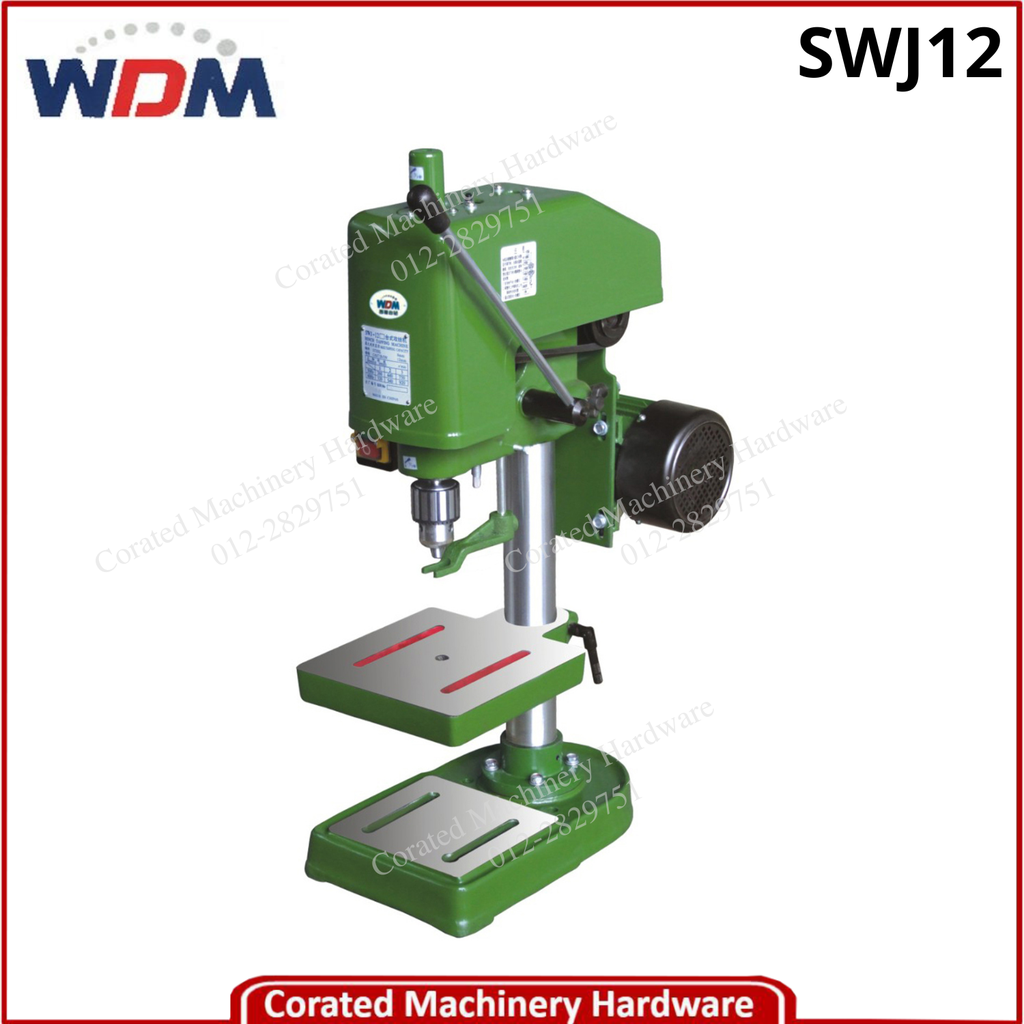

    WEST LING (M12/M8) TAPPING MACHINE, MODEL:SWJ12, (370W/1PHASE, SPINDLE TAPER:B16)

    Product Specification



    Brand

    WEST LING

    Barcode

    WL-SWJ12





    Model

    WEST LING (M12/M8) TAPPING MACHINE

    MODEL:SWJ12 (370W/1PHASE, SPINDLE TAPER:B16)

    Local Manufacture Warranty

    N/A

    Product Description

    Model: SWJ12 (Single phase)

    Xest Ling SWJ12 bench tapping machine.

    Features

    • Simple structure and easy operation.
    • It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function .
    • It can tapping continuosly widely used at all kinds of machinery instrument , hardware tools and so on.

    Specifications

    Max. Tapping CapacityCast Iron: M12
    Steel: M8
    Max. Drilling CapacityN/A
    Diameter of Column60 mm
    Spindle Travel40 mm
    Distance Spindle Axis to Column Surface127 mm
    Max. Distance Spindle Nose to Workable240 mm
    Max. Distance Spindle Nose to Base370 mm
    Spindle TaperB16
    Spindle Speeds Range260-850rpm
    Spindle SpeedsN/A
    Dimensions of Worktable Surface235mm x 235mm
    Dimensions of Base Worktable Surface450mm x 250mm
    Overall Height810 mm
    Motor370 W
    Volt220~240V, Single Phase
    Weight50 kg
